Transient and Steady-state Response Analysis

Transient response analysis examines how control systems behave during transitions from initial to final states, while steady-state analysis focuses on long-term system behavior. This comprehensive course covers first and second-order systems, stability criteria, and the Routh-Hurwitz method through practical applications in automotive cruise control, power grids, and aerospace systems that are essential for engineering students and professionals across the United States.

• Understand the fundamental differences between transient and steady-state responses in control systems
• Analyze first-order system responses to step, ramp, and impulse inputs using time constants
• Explore second-order system characteristics including damping ratios, natural frequency, and overshoot
• Identify underdamped, critically damped, and overdamped system behaviors through mathematical analysis
• Apply stability analysis techniques to determine system performance and reliability
• Learn the Routh-Hurwitz criterion for assessing system stability without solving characteristic equations
• Analyze real-world control systems including servo motors, power grids, and automotive applications
• Calculate key performance metrics such as rise time, settling time, peak overshoot, and steady-state error

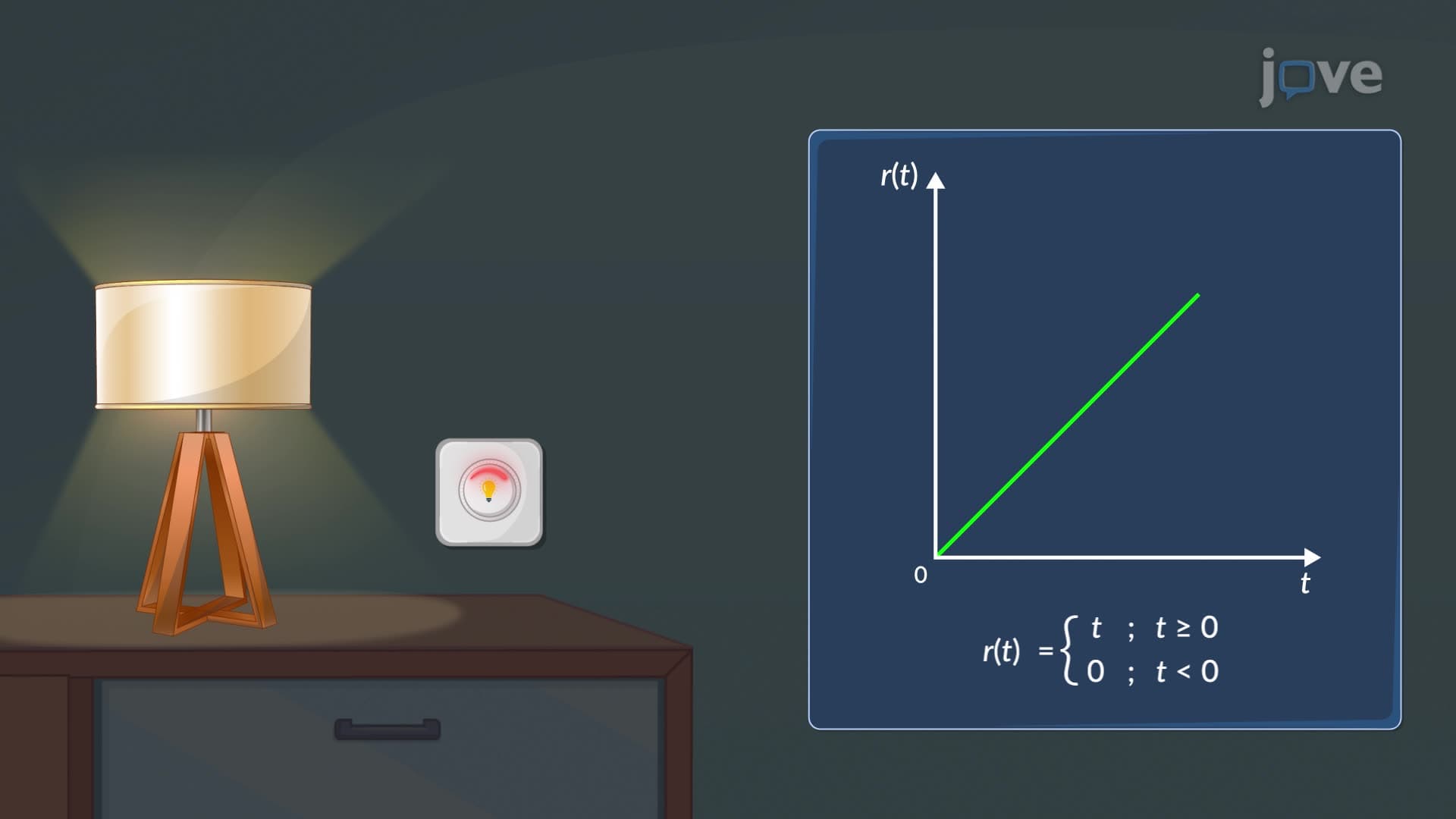

1. Transient Response Analysis and Test Signals: Understanding how systems respond to sudden changes using step functions for disturbances, ramp functions for gradual changes, and impulse functions for shock inputs. In automotive cruise control systems, engineers analyze step responses when drivers suddenly change speed settings, while ramp responses help understand gradual acceleration scenarios. The transient response reveals critical performance characteristics including rise time, settling time, and peak overshoot that determine system quality and user experience.

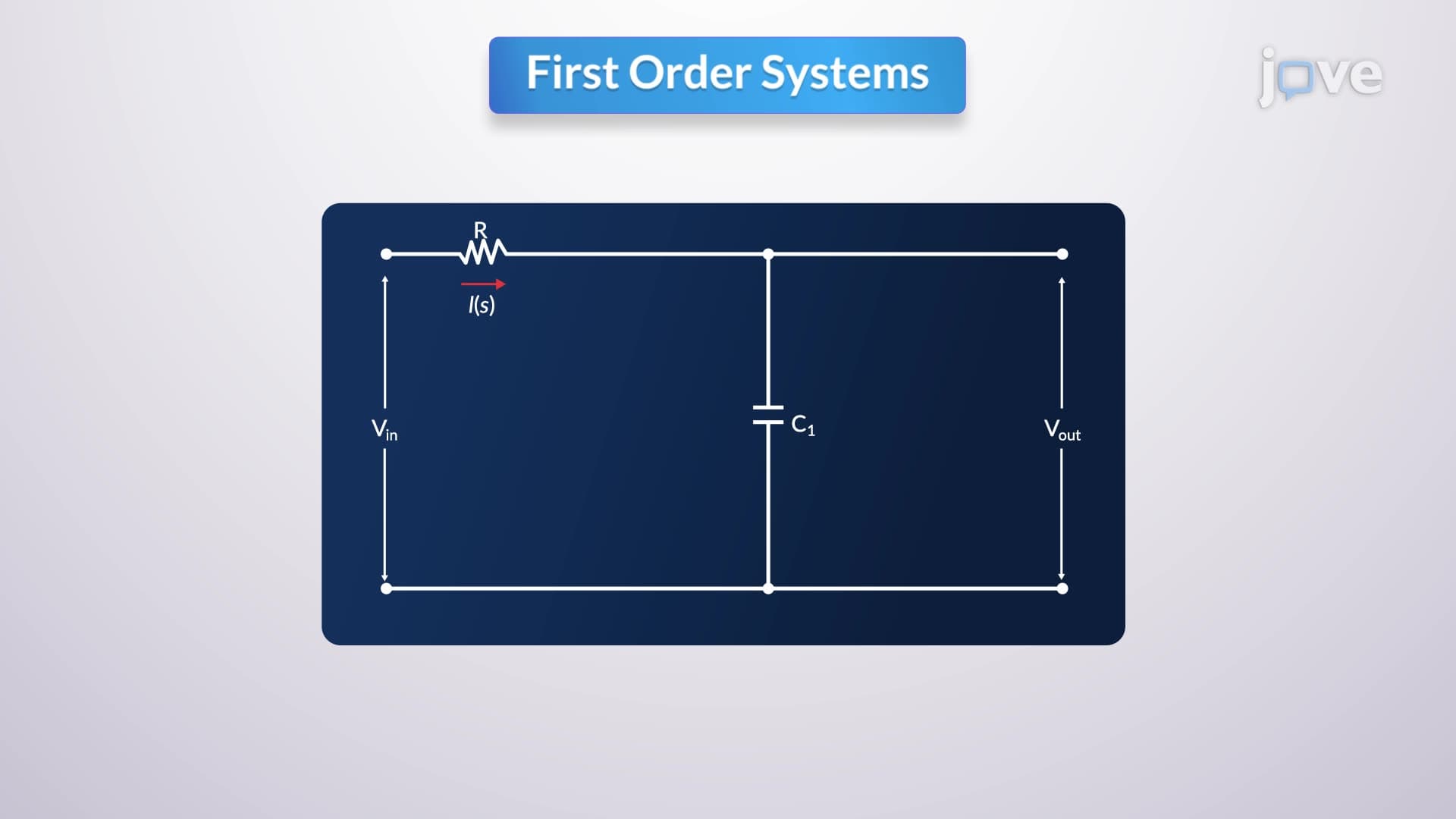

2. First-Order System Analysis: Examining simple RC circuits and thermal systems that exhibit exponential responses to various inputs. The time constant determines how quickly a system reaches 63.2% of its final value, which is crucial for designing responsive systems like temperature controllers in HVAC systems or electronic filters in audio equipment. Understanding steady-state error helps engineers optimize system accuracy, particularly important in precision applications like medical devices and manufacturing equipment.

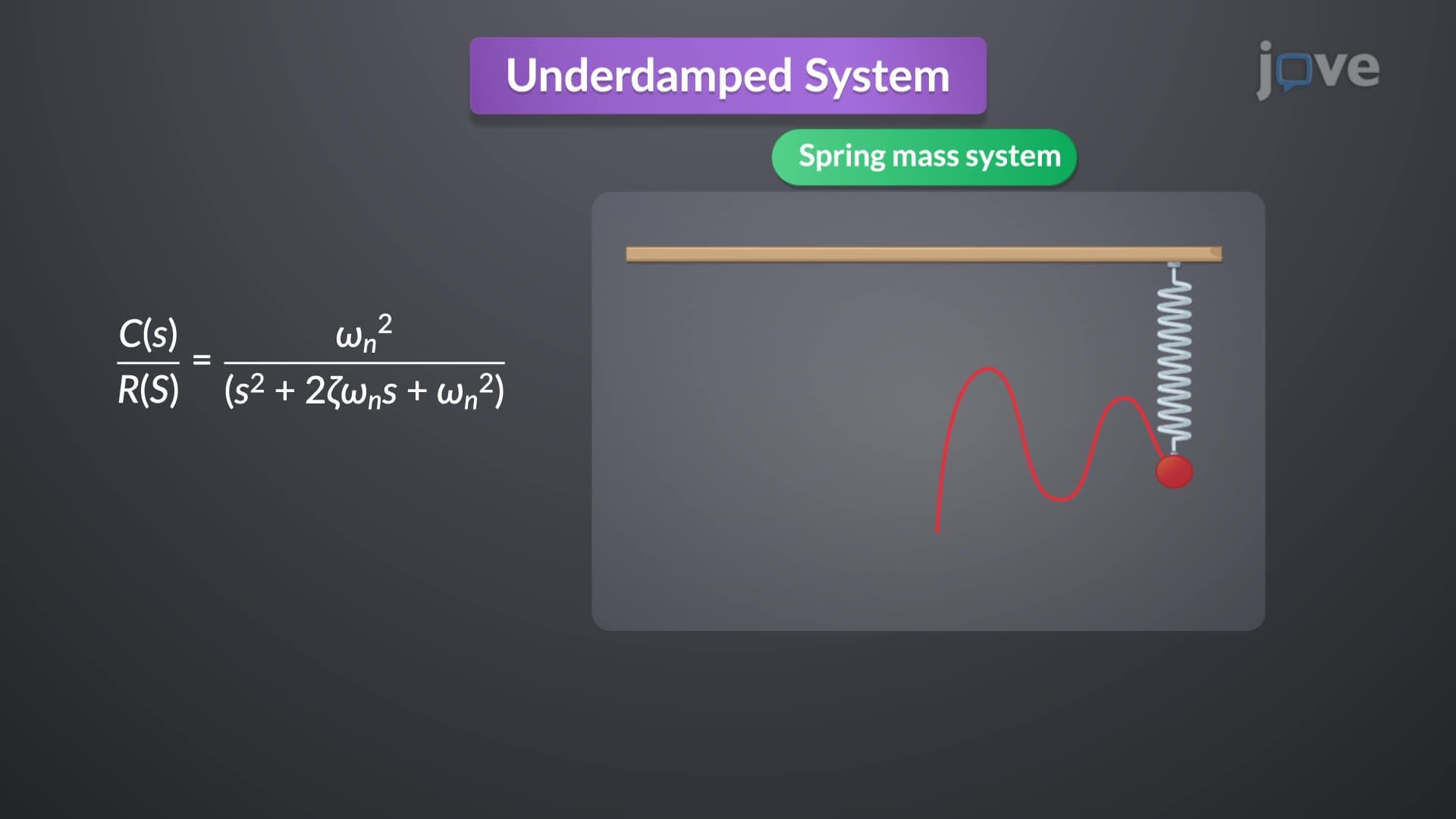

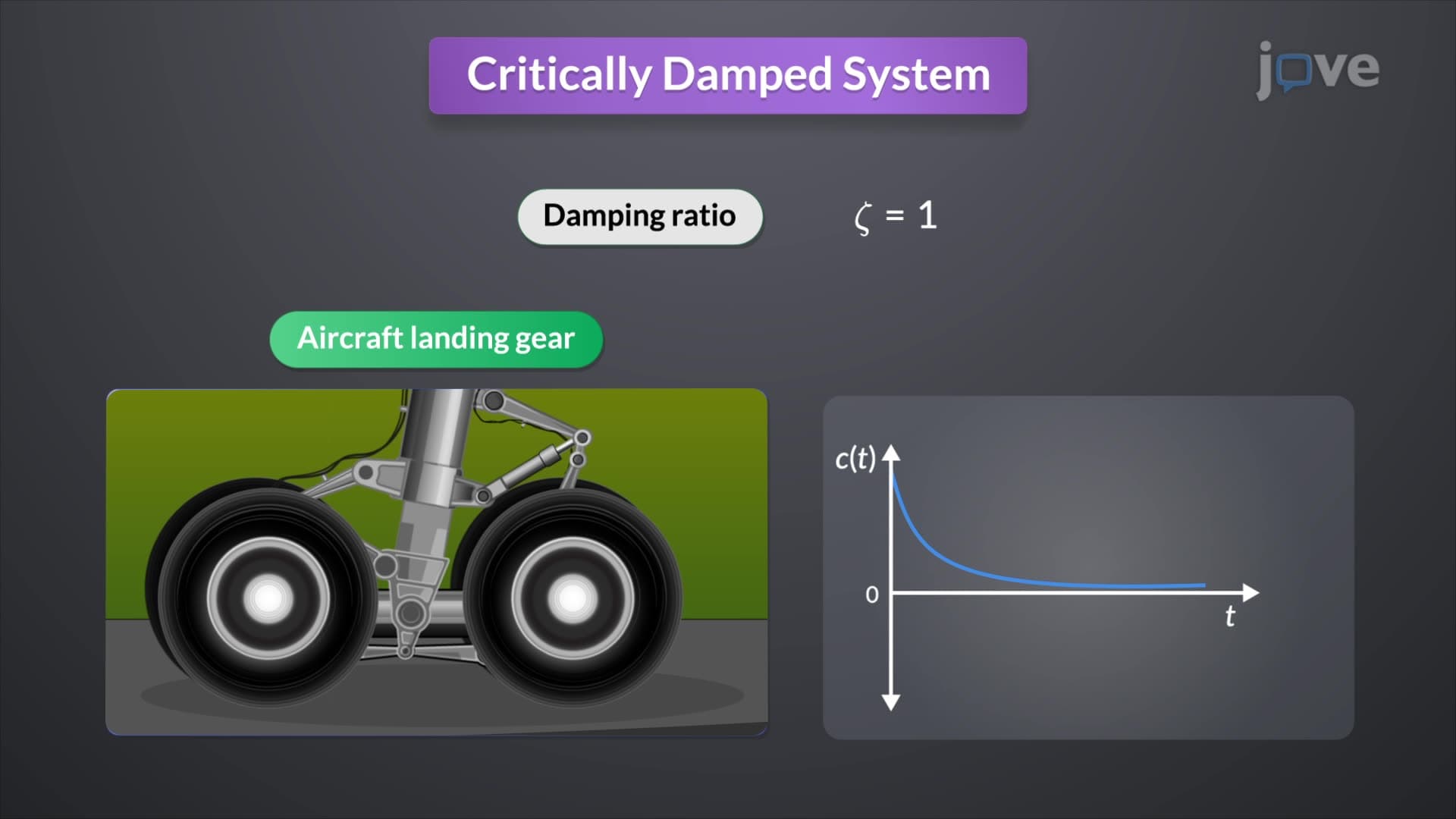

3. Second-Order System Dynamics: Analyzing complex systems like servo motors and mechanical vibrations that exhibit oscillatory behavior. The damping ratio determines whether systems are underdamped (oscillatory), critically damped (fastest response without overshoot), or overdamped (slow but stable). Aircraft control surfaces, suspension systems in vehicles, and robotic actuators all demonstrate second-order characteristics that engineers must carefully tune for optimal performance and passenger comfort.

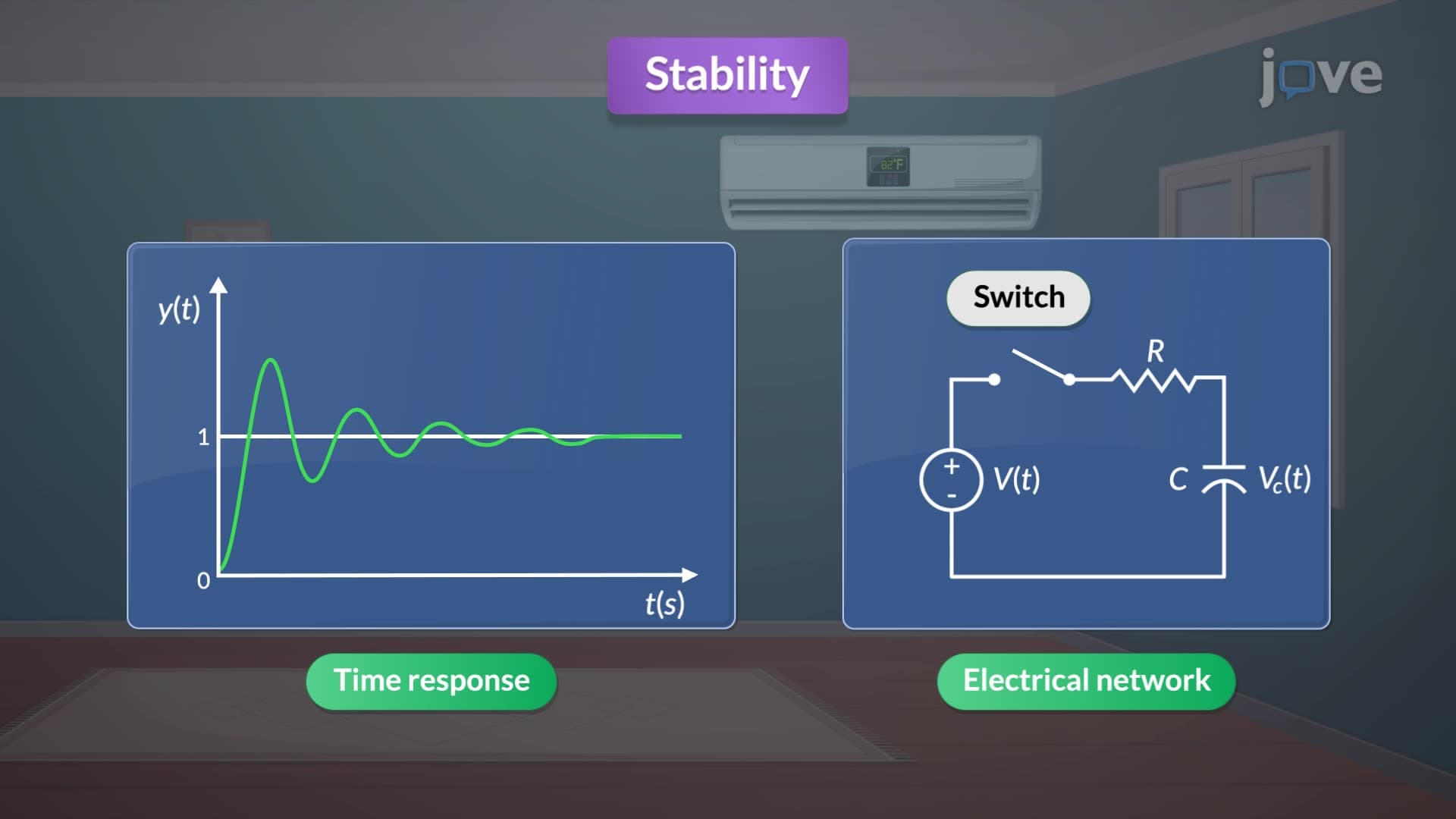

4. Stability Analysis Using Pole Locations: Determining system stability by examining characteristic equation roots in the s-plane. Stable systems have all poles in the left half-plane, ensuring bounded outputs for bounded inputs. This concept is critical for power grid stability, where unstable conditions can lead to blackouts across entire regions. Engineers use this analysis to design protective systems that maintain stability during fault conditions or load variations.

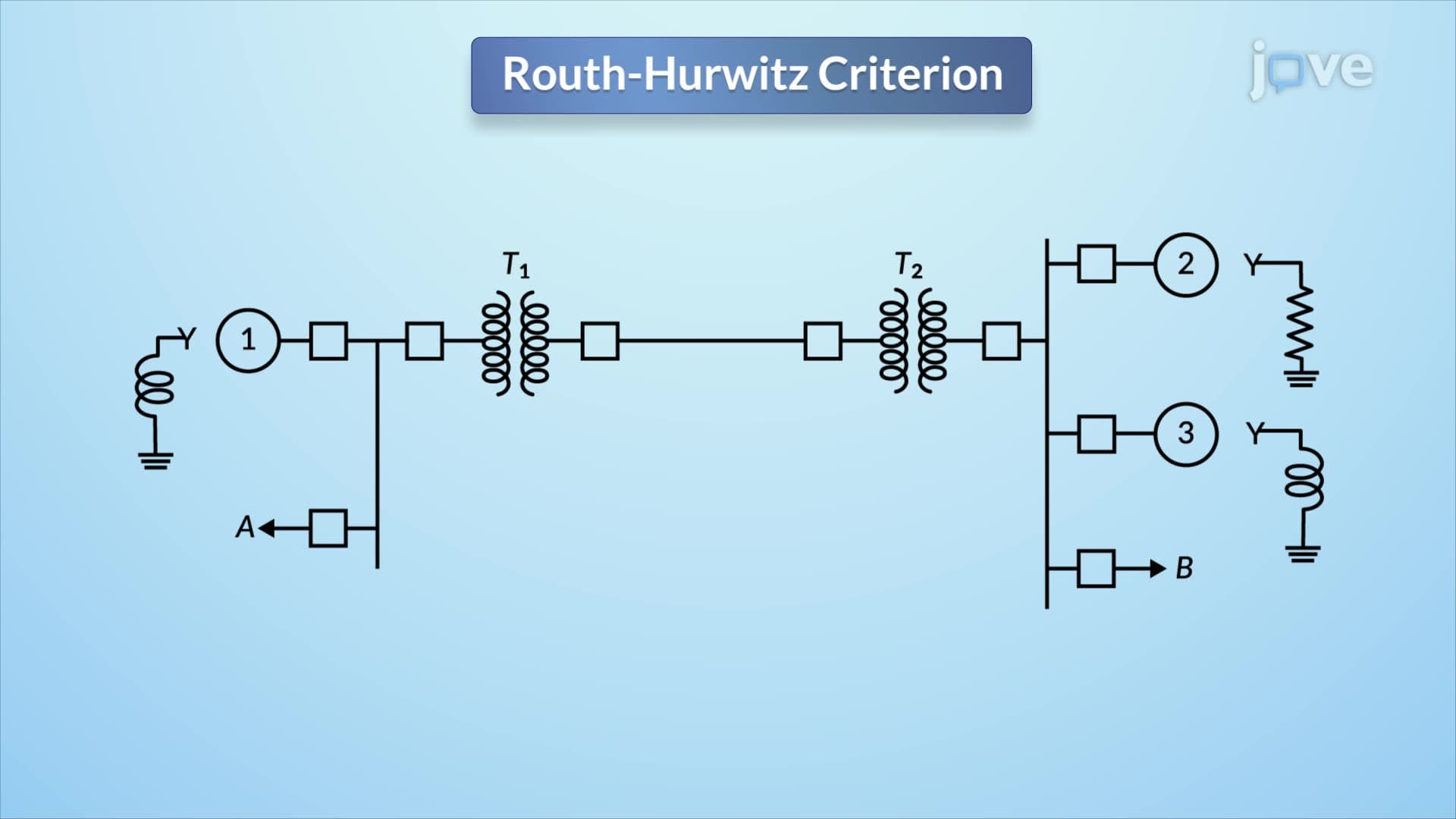

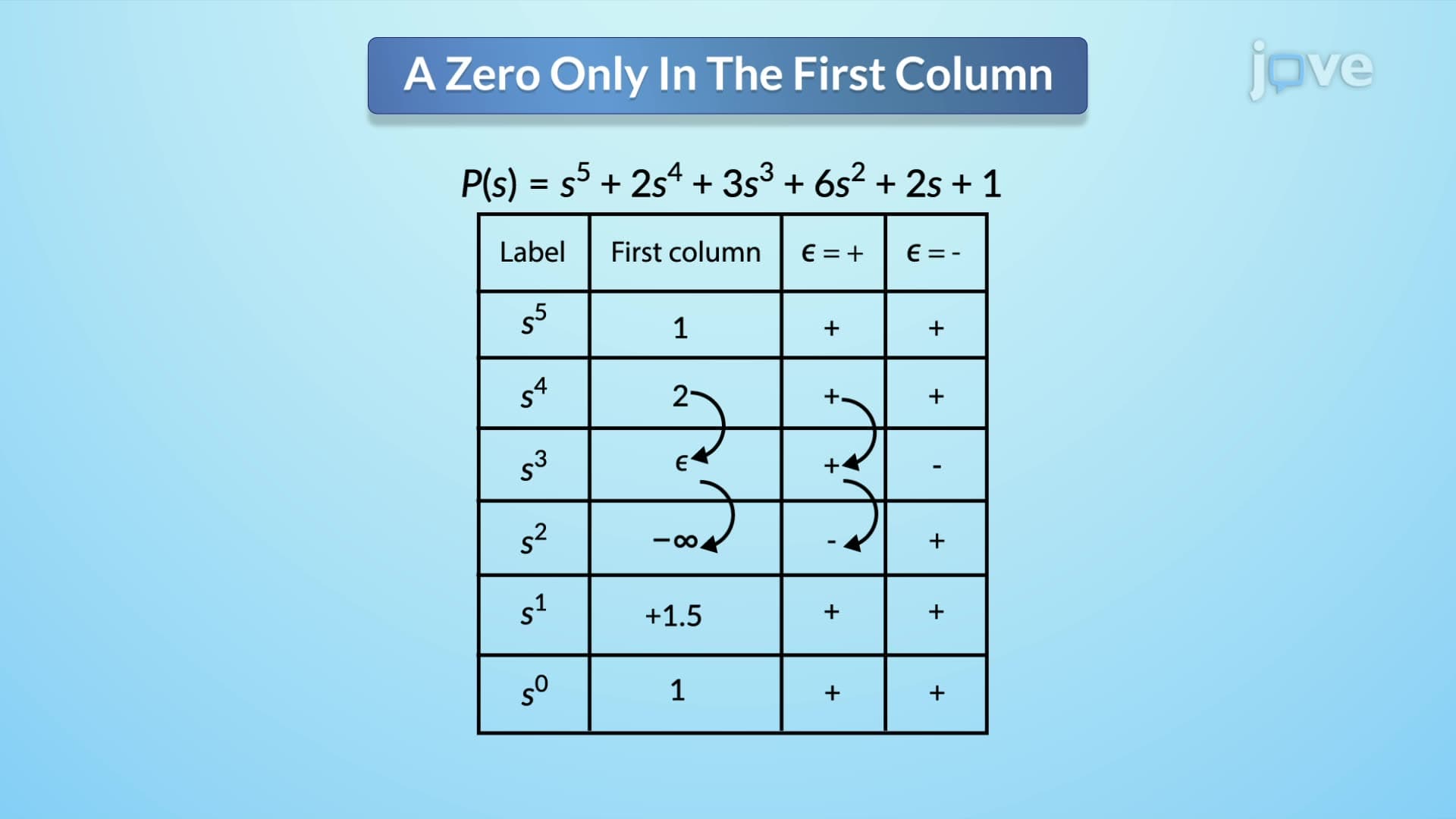

5. Routh-Hurwitz Stability Criterion: Applying systematic tabular methods to determine stability without solving characteristic polynomials directly. This powerful technique handles special cases including zero entries and entire rows of zeros, which correspond to marginally stable systems. Power system engineers use this criterion to assess grid stability under varying load conditions, while control engineers apply it to design feedback controllers that maintain stability across operating ranges.
