AC Steady State Power

AC steady state power analysis is fundamental to understanding electrical circuits with sinusoidal sources. This comprehensive course covers instantaneous and average power calculations, real reactive apparent power relationships, and practical applications including power factor correction and maximum power transfer theorems. Students will master power analysis in AC steady state circuits through systematic exploration of complex power concepts, RMS values, and conservation principles essential for electrical engineering coursework and standardized exams. JoVE Coach provides interactive learning support throughout.

• Understand instantaneous power behavior in resistive, inductive, and capacitive circuits
• Learn to calculate average power using integration and RMS values
• Identify the relationship between effective values and DC equivalent measurements
• Explore complex power representation using real and imaginary components
• Analyze power conservation principles in AC circuit networks
• Apply power factor concepts to improve electrical system efficiency
• Understand power factor correction techniques using compensating capacitors
• Learn the power superposition principle for multiple frequency sources

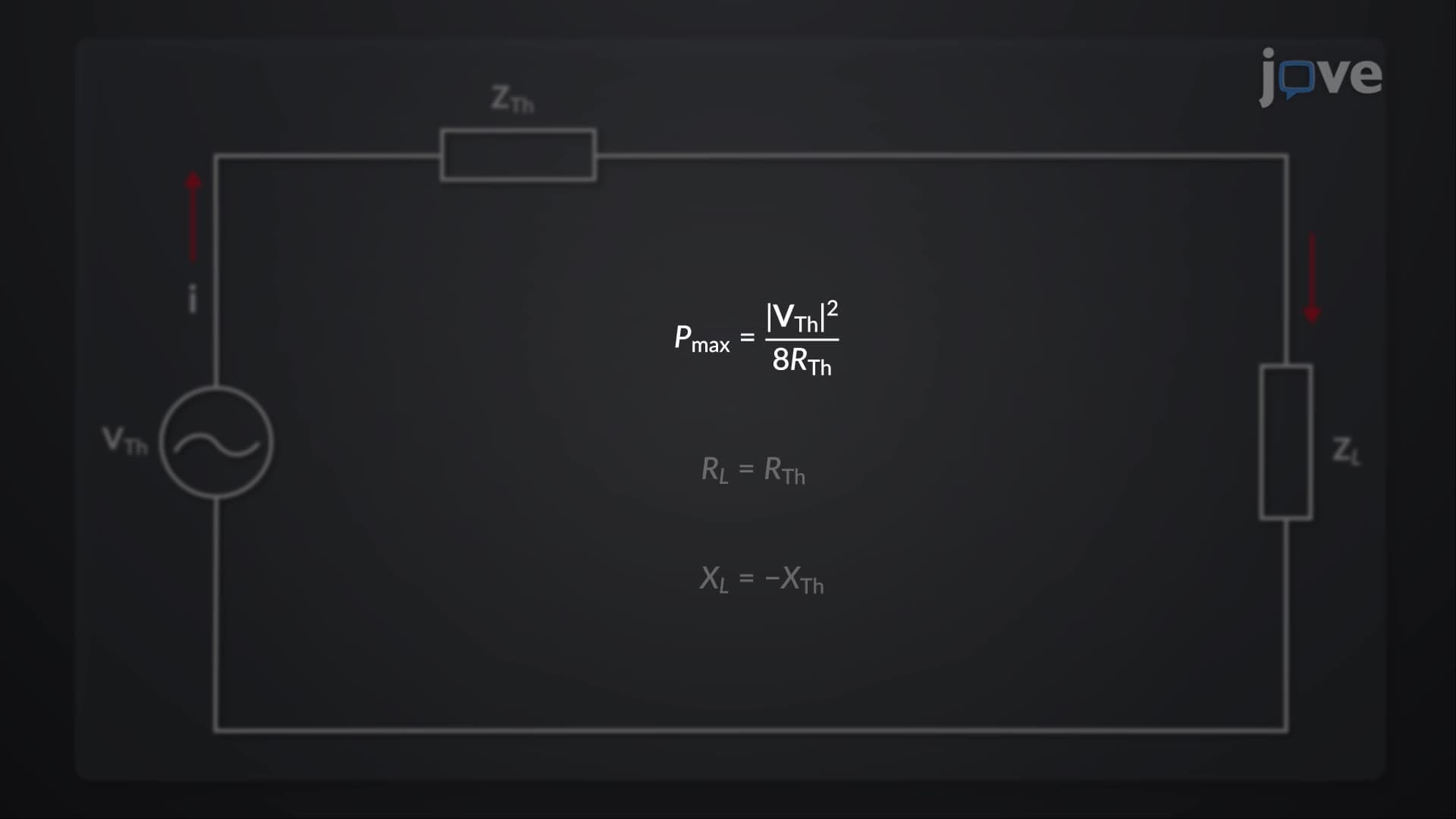

• Apply maximum power transfer theorem to optimize circuit performance

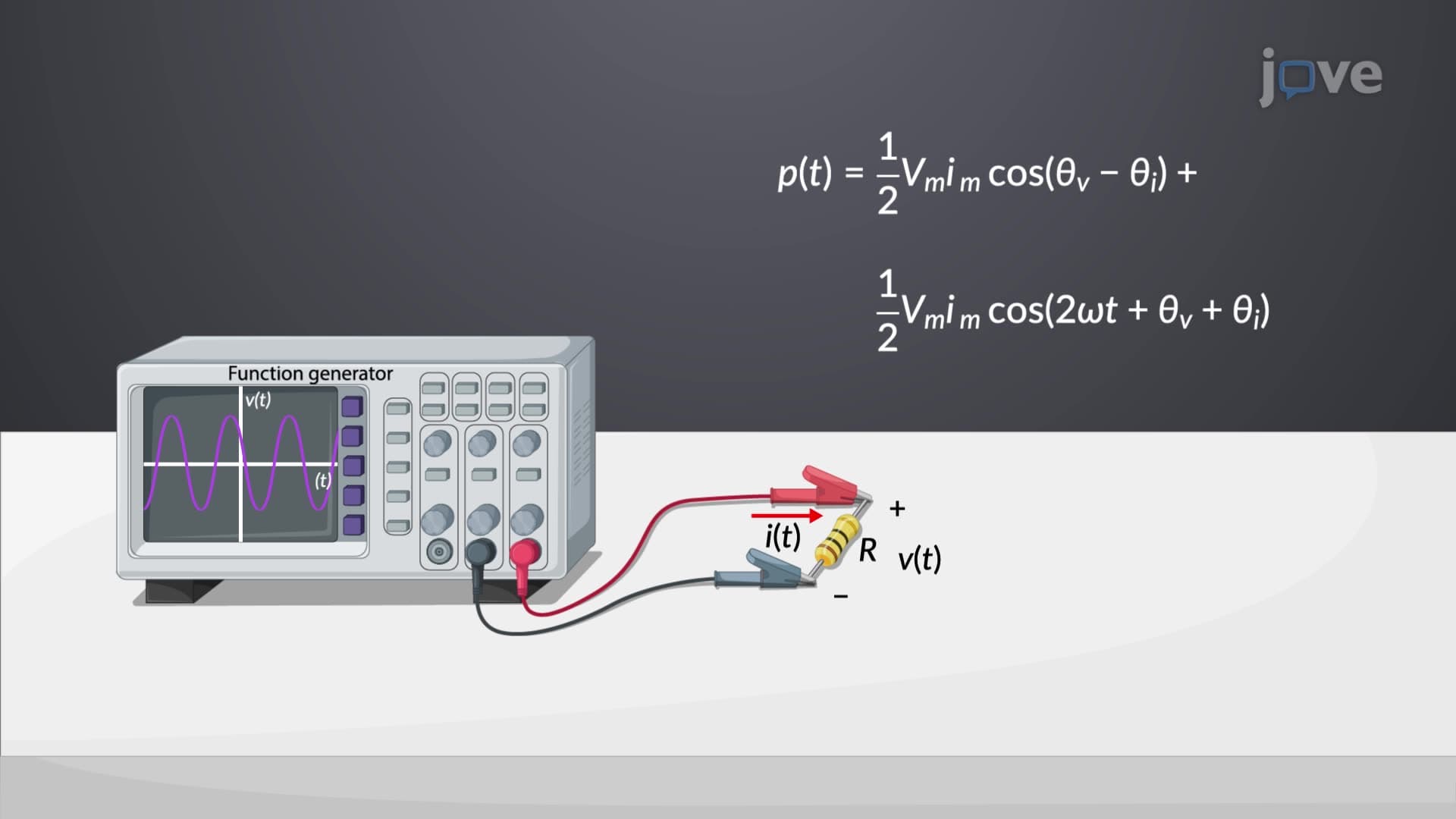

1. Instantaneous Power Analysis Instantaneous power in AC circuits equals the product of voltage and current at any given moment. In purely resistive circuits, power remains consistently positive as voltage and current stay in phase. However, circuits containing inductors or capacitors experience power oscillation between positive and negative values due to phase differences. During negative power periods, reactive elements release stored energy back to the circuit, acting temporarily as power sources. Understanding this behavior is crucial for analyzing power flow in AC systems found in household appliances and industrial equipment.

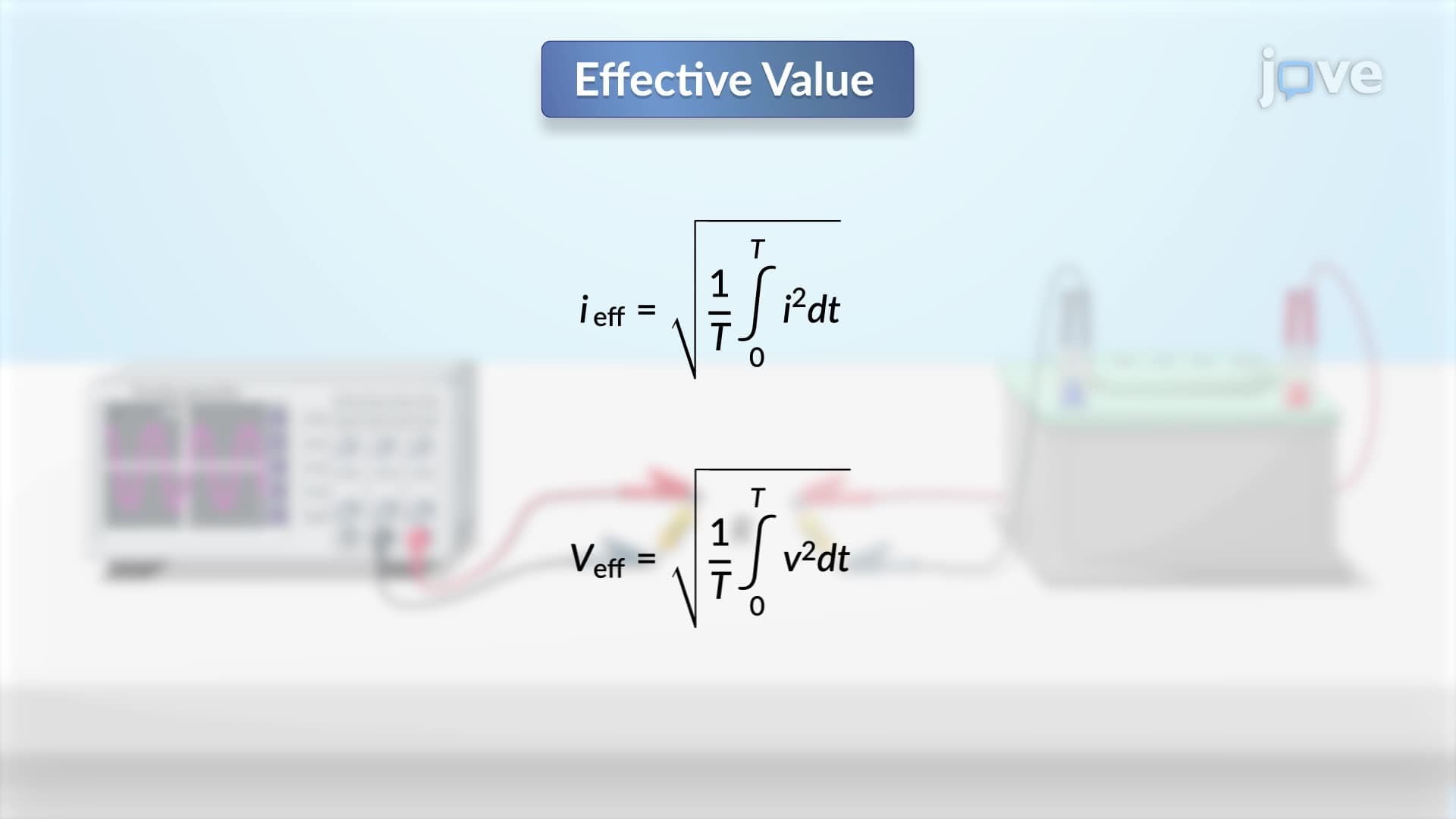

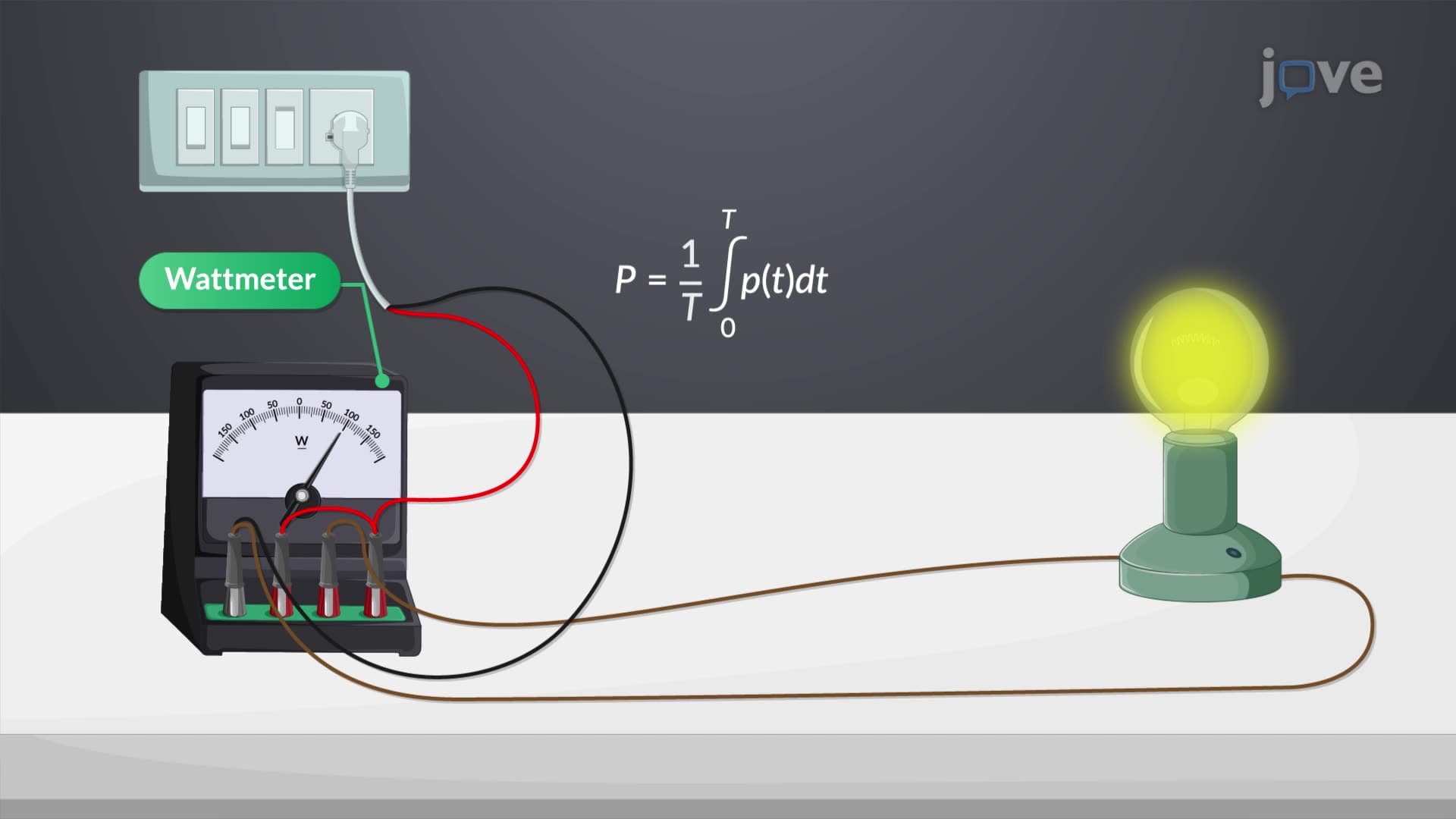

2. Average Power and RMS Values Average power represents the time-independent power delivered over a complete cycle, calculated by integrating instantaneous power over one period. The effective or RMS value of an AC signal produces the same heating effect as an equivalent DC value. For sinusoidal waveforms, RMS equals peak value divided by √2. This concept explains why household AC voltage is rated at 120V RMS in the United States, delivering equivalent heating power to 120V DC. RMS calculations are essential for power calculations in electrical systems from home circuits to power transmission networks.

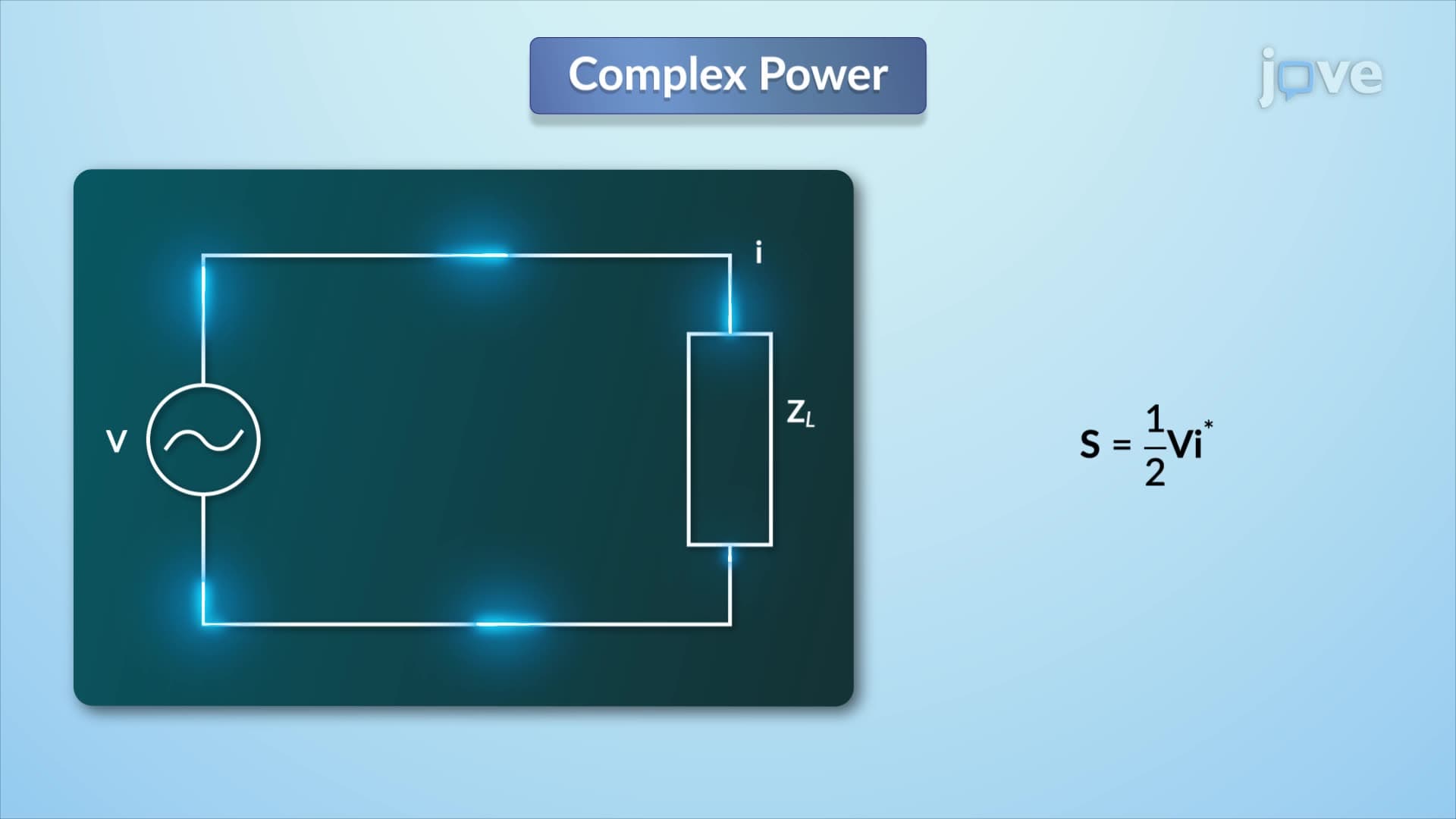

3. Complex Power and Power Triangle Complex power combines real and reactive power components using phasor notation, where S = VI*/2. The real part represents average power (watts), while the imaginary part represents reactive power (VARs). Apparent power equals the magnitude of complex power. The power triangle visualizes these relationships, with real power as the horizontal leg, reactive power as the vertical leg, and apparent power as the hypotenuse. This visualization helps electrical engineers design efficient power systems for everything from residential distribution to industrial motor drives.

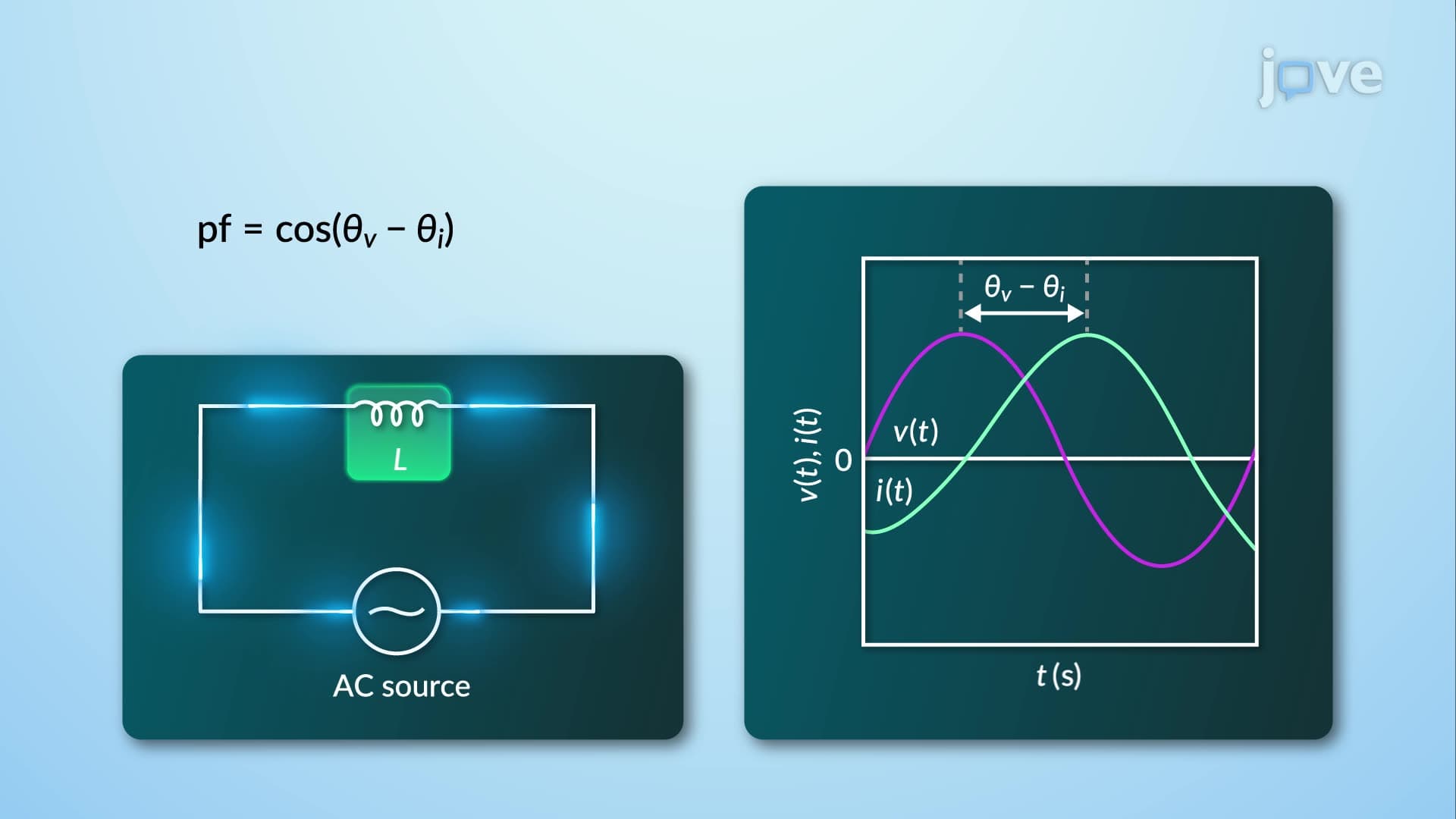

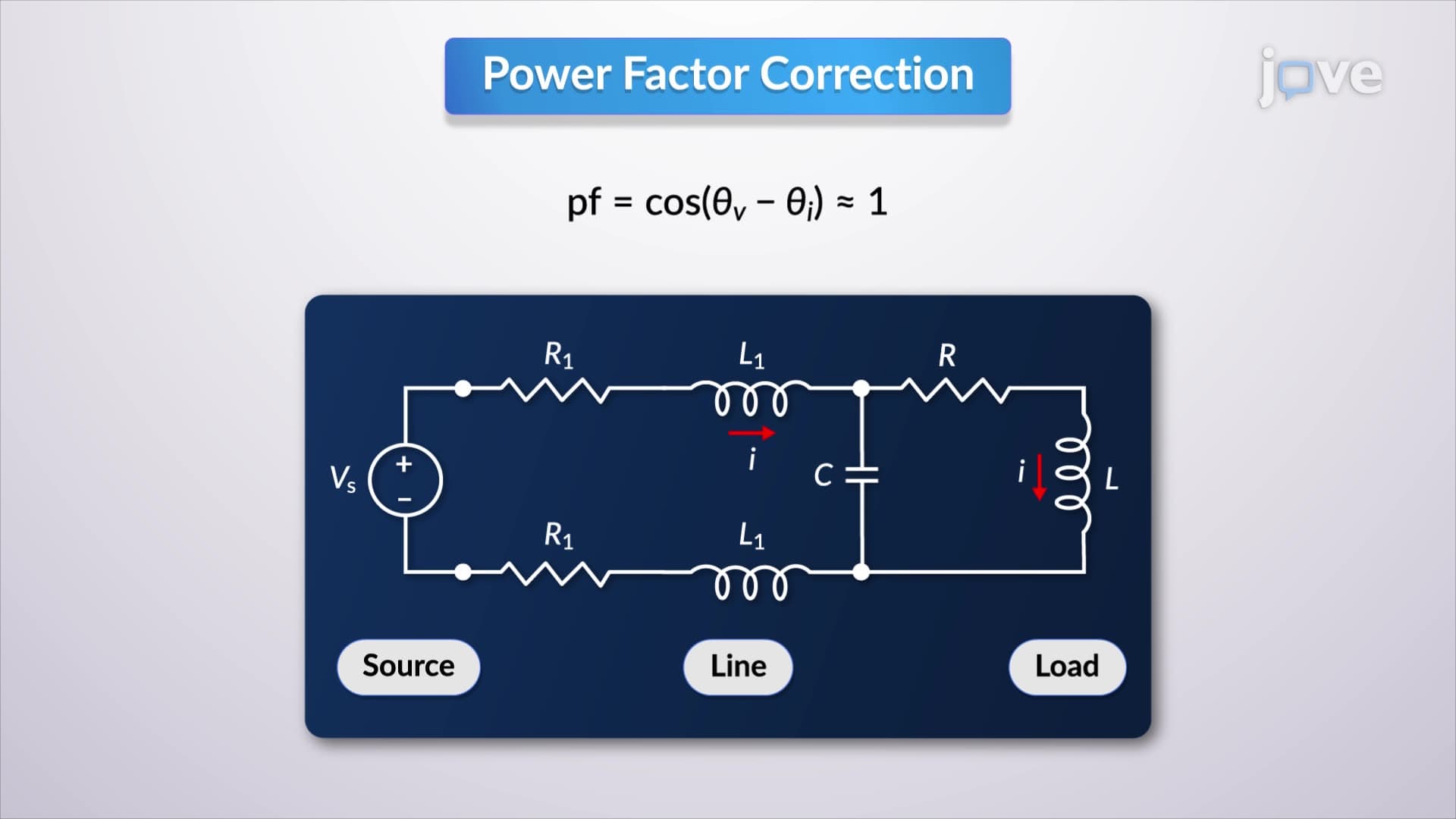

4. Power Factor and Correction Power factor equals the ratio of real power to apparent power, indicating circuit efficiency. Unity power factor (1.0) represents purely resistive loads, while zero indicates purely reactive loads. Inductive loads create lagging power factors, while capacitive loads create leading power factors. Poor power factor increases transmission losses and utility costs. Power factor correction using parallel capacitors reduces reactive power demand, improving system efficiency. Electric utilities often penalize industrial customers with low power factors, making correction economically important for manufacturing facilities.

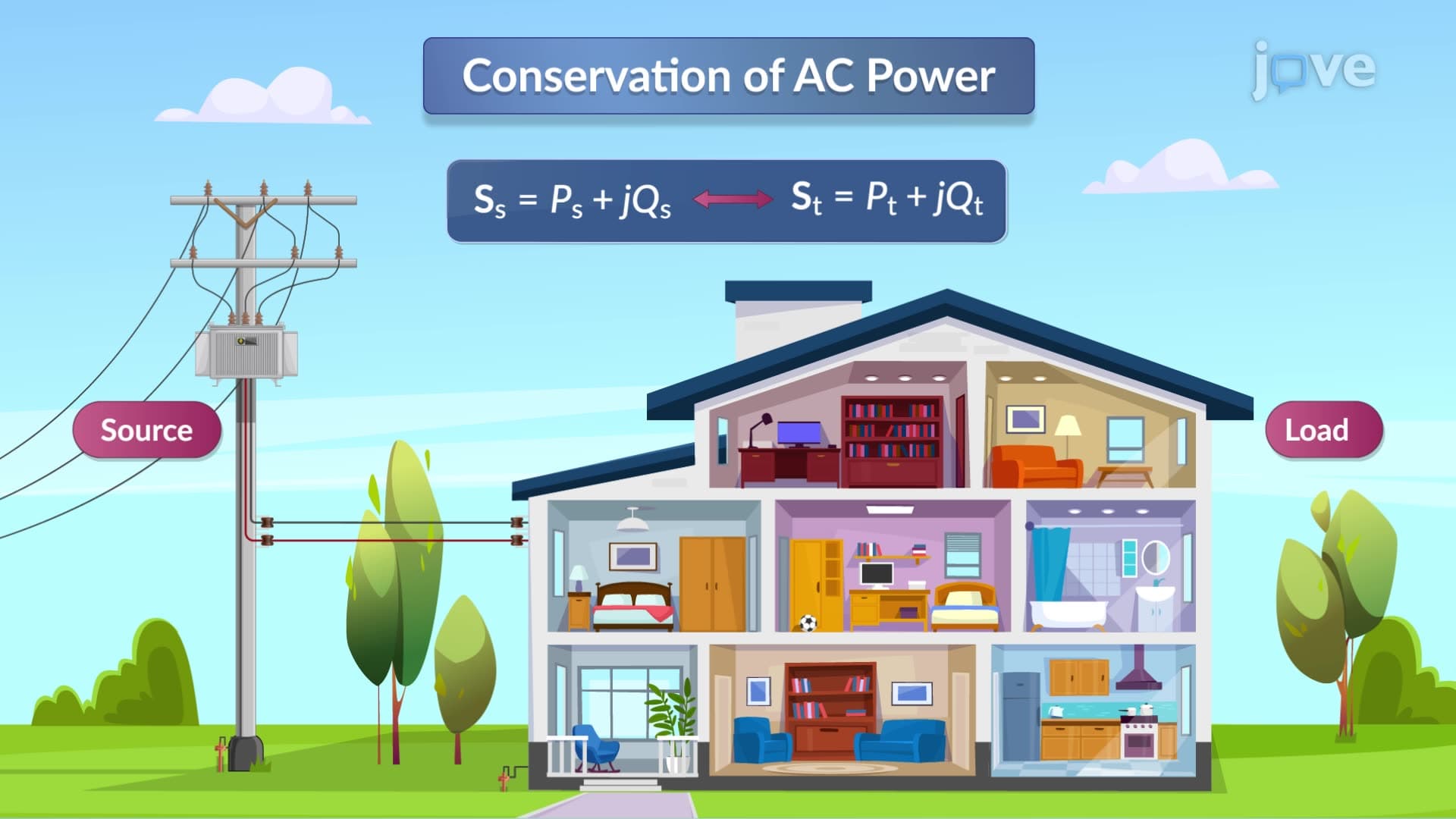

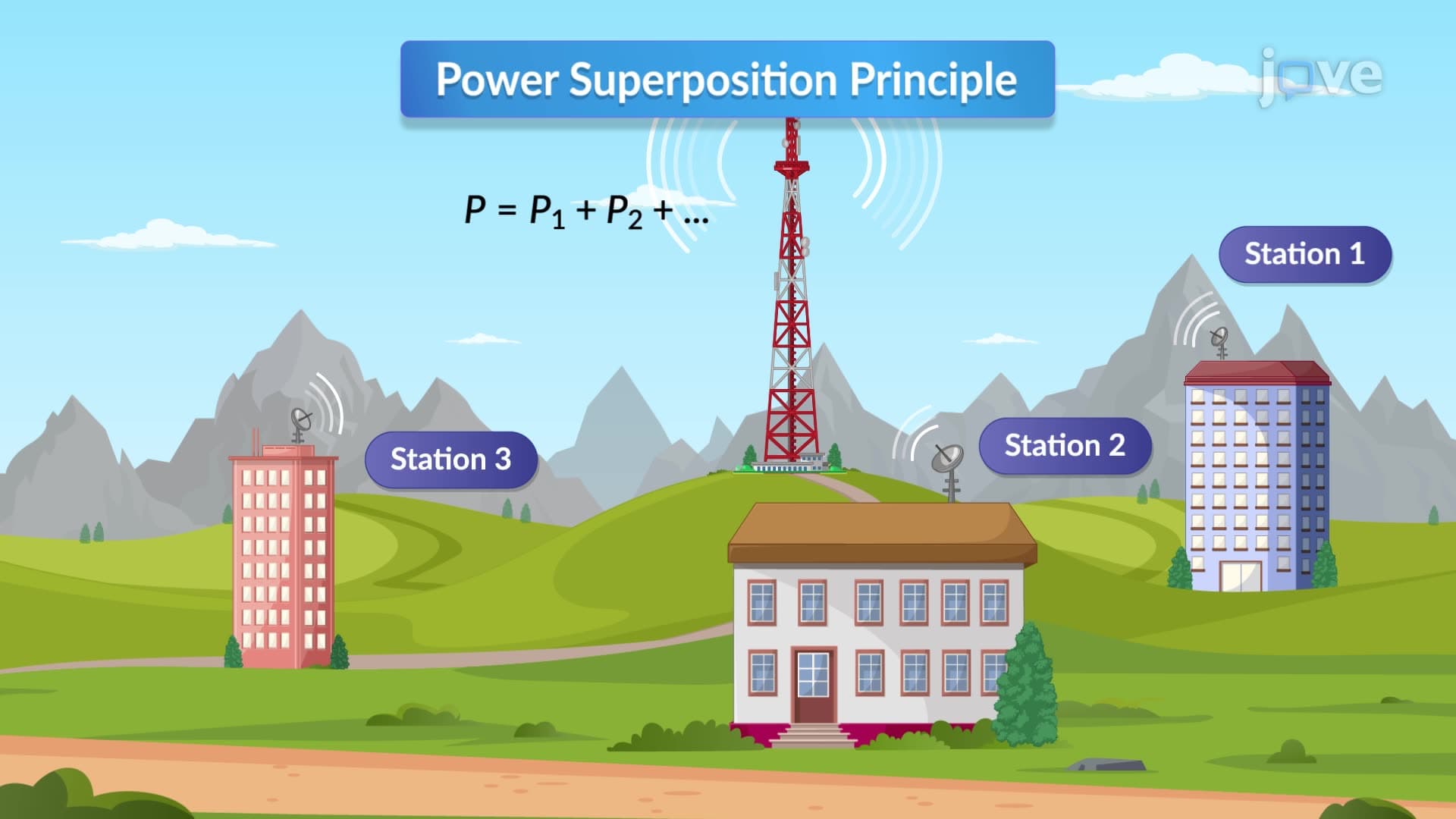

5. Conservation and Superposition Principles AC power conservation states that total power supplied equals total power consumed in any circuit network. This principle applies to complex, real, and reactive power components individually. The power superposition principle demonstrates that average powers from sources at different frequencies add directly, with cross-terms averaging to zero. This principle explains how radio receivers can separate signals from multiple broadcasting stations. These conservation laws are fundamental to power system analysis in electrical grids and electronic communication systems.
